MS3108B32-414PW -

Circular Connector, MIL-DTL-5015 Series, Right Angle Plug, 52 Contacts, Solder Pin, Threaded

MS3108B32-414PW - Circular Connector, MIL-DTL-5015 Series, Right Angle Plug, 52 Contacts, Solder Pin, Threaded
MS3108B32-414PW - Circular Connector, MIL-DTL-5015 Series, Right Angle Plug, 52 Contacts, Solder Pin, Threaded

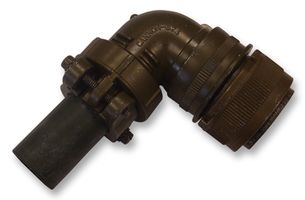

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MS3108B32-414PW
Order Code:
1595161
Product Range
MIL-DTL-5015 Series
Technical Datasheet:
(EN)
See all Technical Docs

Product Overview

The MS3108B32-414PW from Amphenol is MIL-DTL-5015 series right angle plug with 52 contacts. MIL-DTL-5015 series connectors are available in a wide range of shell materials and finishes with 48 and 500 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability in medium to heavy weight cylindrical construction. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.
  • 5 shell styles with 19 shell sizes
  • Single key/keyway shell polarization
  • High reliability, moisture and corrosion resistant
  • 100 mating cycles, IP67 environmental protection
  • Operates at extreme temperature range of -55°C to +125°C
  • Minimum insulation resistance is 5000Mohm at 25°C
  • Quick mating, threaded coupling
  • Environmental sealing, low weight and cost effective
  • Aluminium alloy body material with olive drab chromate over cadmium plating
  • Brass, copper alloy solder pin contacts with silver plating

Applications

Aerospace, Defence, Military, Industrial

Product Information

:
MIL-DTL-5015 Series
:
Right Angle Plug
:
52Contacts
:
Solder Pin
:
Threaded
:
32-414
:
Aluminium Alloy Body
:
Olive Drab Chromate over Cadmium
:
Brass, Copper Alloy
:
Silver
:
W
:
General Duty
:
MIL-DTL-5015 Series
