RUBYCON  10ZL680MEFC8X16  Electrolytic Capacitor, Miniature, ZL Series, 680 µF, ± 20%, 10 V, 8 mm, Radial Leaded

RUBYCON 10ZL680MEFC8X16

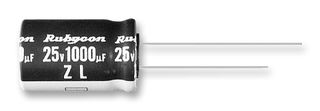

Image is for illustrative purposes only. Please refer to product description.

  • Manufacturer:
  • Order Code: 1144681
  • Manufacturer Part No 10ZL680MEFC8X16

Product Overview


The ZL series from Rubycon are miniaturized, radial leaded aluminium electrolytic capacitors. The capacitance value ranges from 5.6µF to 6800µF.
  • ±20% tolerance
  • Rated voltage range from 6.3VDC to 100VDC
  • Endurance is 1000hours to 5000hours at 105°C
  • Operating temperature range from -40°C to +105°C
  • High ripple current and low impedance
  • Capacitor size varies from 5 × 11mm to 18mm × 40mm (D x L)

Applications

Industrial; Power Management; Consumer Electronics; Portable Devices

Product Range

Back to top

Product Information


  • Product Range ZL Series
  • Capacitance 680µF
  • Capacitance Tolerance ± 20%
  • Voltage Rating 10V
  • Diameter 8mm
  • Capacitor Terminals Radial Leaded
  • Packaging Each
  • ESR -
  • Height 16mm
  • Lead Spacing 3.5mm
  • Lifetime @ Temperature 3000 hours @ 105°C
  • Operating Temperature Min -40°C
  • Operating Temperature Max 105°C
  • SVHC To Be Advised

Find similar products  grouped by common attribute

This product also features in the following pages and catalogues editions:

  •  UK1/1286

Availability

Availability:  236


  • 236 in stock for same day despatch

Check stock and lead times
  • 1,000 will be available for delivery on Sep 30, 2016
  • More stock available week commencing 11/14/16

Price for: Each

Minimum order quantity: 1

Order multiple quantity: 1

Price: US$0.667 US$0.667

Buy

Price

Quantity List Price
1 - 49 US$0.667
50 - 99 US$0.364
100 - 249 US$0.316
250 - 499 US$0.251
500 - 999 US$0.241
1000 - 4999 US$0.231
5000 - 9999 US$0.193
10000+ US$0.172


Low

Legislation and Environmental


  • Country of Origin: Japan

    Country in which last significant manufacturing process was carried out

  • RoHS Compliant: Yes
      RoHS Certificate of Compliance
  • Tariff No: 85322200
  • Weight (kg): .002
Back to top
