471-028

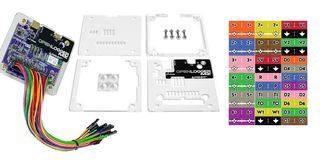

OpenLogger Kit, Portable Data Logger, High Resolution,
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | US$177.108 |
Price for:Each
Minimum: 1
Multiple: 1
US$177.11 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerDIGILENT
Manufacturer Part No471-028
Order Code3247722
Silicon Manufacturer-
Silicon Core Number-
Kit Application TypeEducation / Hobby
Application Sub TypeData Logger
Kit ContentsOpenLogger, Protective Acrylic Case (Assembly Required), OpenLogger Flywires, Flywire Labels Sheet
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
OpenLogger is a high‐resolution data logger provides quality measurements without the limits of traditional data logging or data acquisition solutions.
- OpenLogger and acrylic case
- Eight analogue data logging channels with 16bits at 500Ksps and 50KHz bandwidth
- One‐channel function generator with 10bit resolution and 2Msps
- Two‐channel power supply at ±4V and 50mA per channel
- Eight digital I/O channels
- USB or wireless connection
- Data streamed via USB/Wi-Fi or logged to SD
- USB or externally powered
- Browser‐based open source WaveForms live software
Contents
OpenLogger, Protective acrylic case (assembly required), OpenLogger flywires, OpenLogger Flywire labels sheet.
Technical Specifications
Silicon Manufacturer
-
Kit Application Type
Education / Hobby
Kit Contents
OpenLogger, Protective Acrylic Case (Assembly Required), OpenLogger Flywires, Flywire Labels Sheet
SVHC
No SVHC (21-Jan-2025)
Silicon Core Number
-
Application Sub Type
Data Logger
Product Range
-
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.34019
