MEC125-4PV-C

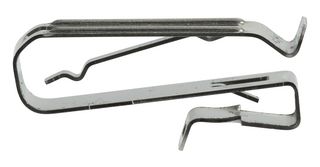

Fastener, Edge Mount Wire Clip, Stainless Steel, Silver, 15.2 mm, 12.7 mm
Image is for illustrative purposes only. Please refer to product description.
No Longer Stocked
Product Information
ManufacturerPANDUIT
Manufacturer Part NoMEC125-4PV-C
Order Code3771063
Cable Clamp / Clip TypeEdge Mount Wire Clip
Internal Diameter-
Cable Clamp / Clip MaterialStainless Steel
Cable Clamp / Clip ColourSilver
External Length15.2mm
External Width12.7mm
Height34.8mm
Product Range-
SVHCNo SVHC (17-Dec-2015)
Product Overview
Metal edge clips that are oriented to route wires parallel to outer edge of the panel.
- Can be installed on a Panel thickness ranging from 0.051" to 0.125"
- Can accommodate 1 or 4 PV wires 12-10 gauge(4 – 6mm²)
- Stainless steel material
Technical Specifications
Cable Clamp / Clip Type
Edge Mount Wire Clip
Cable Clamp / Clip Material
Stainless Steel
External Length
15.2mm
Height
34.8mm
SVHC
No SVHC (17-Dec-2015)
Internal Diameter
-
Cable Clamp / Clip Colour
Silver
External Width
12.7mm
Product Range
-
Technical Docs (2)
Legislation and Environmental
Tariff No:73269098
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Dec-2015)
