TG2511
Function Generator, Arbitrary / Pulse, 1 Channel, 25 MHz, TGxx11 Series

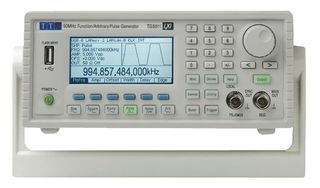

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAIM-TTI INSTRUMENTS
Manufacturer Part NoTG2511
Order Code1825613
Product RangeTGxx11 Series
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerAIM-TTI INSTRUMENTS
Manufacturer Part NoTG2511
Order Code1825613
Product RangeTGxx11 Series
Technical Datasheet
Signal Generator TypeArbitrary, Function, Pulse
No. of Channels1 Channel
Product RangeTGxx11 Series
Bandwidth25MHz
Signal Generator ModulationAM, FM, FSK, PM, PWM
Manufacturer Warranty3 Years
Plug TypeEU, UK
SVHCNo SVHC (21-Jan-2025)
Alternatives for TG2511
3 Products Found
Product Overview
The TG2511 represents the state-of-the-art in DDS based function generators. The TG2511 significantly outperforms other generators in its price range, not just because of its frequency range, but because of its all round performance and features representing exceptional value for those with lower frequency requirements.
- Up to 25MHz sine and square, 1µHz or 14 digit resolution
- Arbitrary waveforms of up to 128K points at up to 125MS/s
- True pulse generator with variable delay and variable rise/fall
- Internal & external digital modulation, AM, FM, PM, PWM, FSK
- Programmable via USB and LAN interfaces
Applications
Sensing & Instrumentation, Signal Processing, Test & Measurement
Technical Specifications
Signal Generator Type
Arbitrary, Function, Pulse
Product Range
TGxx11 Series
Signal Generator Modulation
AM, FM, FSK, PM, PWM
Plug Type
EU, UK
No. of Channels
1 Channel
Bandwidth
25MHz
Manufacturer Warranty
3 Years
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85432000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):5
