LCC250-12U-4P
AC/DC Enclosed Power Supply (PSU), Medical, 1 Outputs, 250 W, 12 VDC, 20.8 A

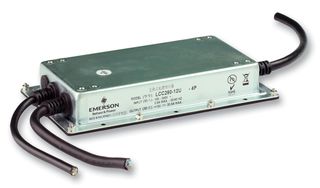

Image is for illustrative purposes only. Please refer to product description.
ManufacturerARTESYN / ADVANCED ENERGY
Manufacturer Part NoLCC250-12U-4P
Order Code2115755
Product RangeLCC250 Series
Technical Datasheet
74 In Stock
Need more?
UK Stock
Order before 3pm standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | US$302.036 |
Price for:Each
Minimum: 1
Multiple: 1
US$302.04 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerARTESYN / ADVANCED ENERGY
Manufacturer Part NoLCC250-12U-4P
Order Code2115755
Product RangeLCC250 Series
Technical Datasheet
Power Supply ApplicationsMedical
No. of Outputs1Outputs
Output Power Max250W
Output Voltage - Output 112VDC
Output Current - Output 120.8A
Output Voltage - Output 2-
Output Current - Output 2-
Output Voltage - Output 3-
Output Current - Output 3-
Output Voltage - Output 4-
Input Voltage AC Min90V
Current, Output 4-
Input Voltage VAC90V AC to 264V AC
Input Voltage AC Max264V
Power Supply Output TypeAdjustable, Fixed
Product RangeLCC250 Series
SVHCNo SVHC (15-Jan-2018)
Product Overview
The LCC250-12U-4P is an AC/DC enclosed Power Supply with adjustable output. Wide operating temperature range suited for outdoor application.
- Overcurrent and overvoltage protection
- Conduction-cooled or convection
- Differential remote sense
- Output ON/OFF (positive or negative logic user selectable)
- ±10% Adjustment range
- 47 to 63Hz Frequency range
- <gt/>0.92 Full load power factor
- 16ms Minimum at 115VAC, 100% load hold-up time
- <lt/>275μA at 230VAC Leakage current
- IP64 Protection rating
Applications
Power Management
Technical Specifications
Power Supply Applications
Medical
Output Power Max
250W
Output Current - Output 1
20.8A
Output Current - Output 2
-
Output Current - Output 3
-
Input Voltage AC Min
90V
Input Voltage VAC
90V AC to 264V AC
Power Supply Output Type
Adjustable, Fixed
SVHC
No SVHC (15-Jan-2018)
No. of Outputs
1Outputs
Output Voltage - Output 1
12VDC
Output Voltage - Output 2
-
Output Voltage - Output 3
-
Output Voltage - Output 4
-
Current, Output 4
-
Input Voltage AC Max
264V
Product Range
LCC250 Series
Technical Docs (2)
Alternatives for LCC250-12U-4P
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Philippines
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Philippines
Country in which last significant manufacturing process was carried out
Tariff No:85044095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):1.1
