BTHQ240064AVB1-COG-EMN-LEDWHITE
Graphic LCD, 240 x 64, White on Blue, 3V, Parallel, No Font, Transmissive

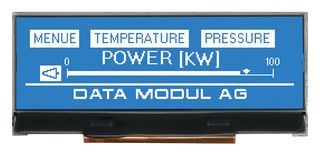

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBATRON
Manufacturer Part NoBTHQ240064AVB1-COG-EMN-LEDWHITE
Order Code2063142
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerBATRON
Manufacturer Part NoBTHQ240064AVB1-COG-EMN-LEDWHITE
Order Code2063142
Technical Datasheet
Resolution240 x 64
Display AppearanceWhite on Blue
Logic Voltage3V
Interface TypeParallel
Font SetNo Font
Display ModeTransmissive
LCD Display TypeBSTN
Module Size120mm x 44.8mm
Operating Temperature Min0°C
Operating Temperature Max50°C
Display ConstructionCOG
Backlighting ColourWhite LED
Product Range-
Alternatives for BTHQ240064AVB1-COG-EMN-LEDWHITE
1 Product Found
Product Overview
The BTHQ240064AVB1-COG-EMN-LEDWHITE is a 240 x 64 dots STN, negative, blue, transmissive Dot Matrix LCD Module with 6 O'clock viewing angle and 1/l6 duty, 1/7 bias driving scheme. 'SITRONIX' SWS6SP (COG) ZPCS dot matrix LCD drivers or equivalent.
- 3V Logic voltage
- FPC connection
- White LED05 backlight
Applications
Industrial, Imaging, Video & Vision
Technical Specifications
Resolution
240 x 64
Logic Voltage
3V
Font Set
No Font
LCD Display Type
BSTN
Operating Temperature Min
0°C
Display Construction
COG
Product Range
-
Display Appearance
White on Blue
Interface Type
Parallel
Display Mode
Transmissive
Module Size
120mm x 44.8mm
Operating Temperature Max
50°C
Backlighting Colour
White LED
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.042
