ME813A-WH50C
Development Module, FT813 Module, 5" TFT Capacitive Touch Screen LCD, Quad SPI Host Connector

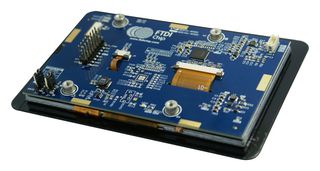

Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerBRIDGETEK
Manufacturer Part NoME813A-WH50C
Order Code2674200
Technical Datasheet
Silicon ManufacturerMaxim Integrated Products
Silicon Core NumberFT813
Kit Application TypeDisplay
Application Sub TypeTFT LCD
Kit ContentsDisplay Module FT813
Product Range-
SVHCNo SVHC (16-Jan-2020)
Product Overview
The ME813A-WH50C from Bridgetek is a development module for FTDI's FT813, Embedded Video Engine (EVE) graphics controller IC. The ME813A-WH50C module includes a 5inch 800 x 480 TFT LCD panel with capacitive touch screen and an audio amplifier to drive an 8ohm / 1W speaker. The ME813A-WH50C module utilises the FT813, FTDI's 2nd generation EVE chip. Graphic, audio and touch functions of the FT813 can be accessed with the ME813A-WH50C. The ME813A-WH50C module is intended for direct use into existing applications that require a display.
- Ready to use 5inch WVGA LCD module
- Supports portrait and landscape display mode
- Bright backlight LED with dimming
- Supports capacitive touch up to 5 simultaneous points
- Supports mono audio from FT813 or external source
- On-board audio amplifier for driving an external 8ohm/1W speaker
- 5V single power supply
- Support direct connectivity to MM900EV series modules as a display add-on
- FT813 module with quad SPI host connector, 5inch 800x480 TFT LCD capacitive touch panel preinstalled
Technical Specifications
Silicon Manufacturer
Maxim Integrated Products
Kit Application Type
Display
Kit Contents
Display Module FT813
SVHC
No SVHC (16-Jan-2020)
Silicon Core Number
FT813
Application Sub Type
TFT LCD
Product Range
-
Technical Docs (2)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Indonesia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Indonesia
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (16-Jan-2020)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.012247
