MODULE, ANALOG TO DIGITAL CONVERTER

DIGILENT 410-396

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
DIGILENT DIGILENT
Manufacturer Part No:
410-396
Order Code:
3264960

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
-

:
-

:
-

:
-

:
-

:
Digilent Eclypse Z7/Genesys ZU Dev Board

:

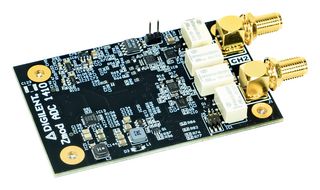

Zmod ADC 1410 SYZYGY-Compatible Dual-Channel 14-bit Analog-to-Digital Converter Module

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (0)

Product Overview

Zmod ADC 1410 SYZYGY-compatible dual-channel 14bit ADC module. The Zmod ADC is one of Digilent's first SYZYGY-compliant expansion modules. The SYZYGY standard offers a much higher speed/bandwidth digital interface than Pmods but at a much smaller and lower cost form-factor than FMC, enabling the user to configure an FPGA development board with the right I/O for their application. Driven by the SYZYGY carrier, the Zmod ADC can simultaneously acquire two ±25V signals with 14bits of resolution at a sample rate up to 100MS/s. Analogue inputs can be connected to a circuit using SMA cables. When coupled to a base board using SYZYGY expansion, like the Eclypse Z7 or Genesys ZU, the combination will serve as a powerful prototyping platform for instrumentation, high-speed control and SDR products. By utilizing these expansion capabilities users can spend more time on the analytical and system-level aspects of the solution.
  • Single ended channel type
  • Input range of ±1V (high gain) or ±25V (low gain)
  • Absolute resolution 0.13mV (high gain) or 3.21mV (low gain)
  • Input impedance of 1Mohm 18pF
  • Analogue bandwidth of 70MHz+ at 3dB, 30MHz at 0.5dB, 20MHZ at 0.1dB
  • Input protected to ±50V
