114-40040

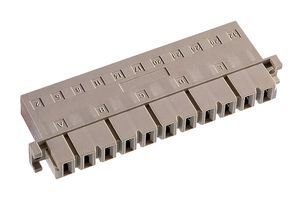

DIN 41612 Connector, 11 Contacts, Receptacle, 7.62 mm, 1 Row
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Notify me when back in stock
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | US$17.246 |
| 10+ | US$12.824 |
| 25+ | US$11.363 |
| 100+ | US$10.640 |
| 250+ | US$8.777 |
| 500+ | US$8.603 |
Price for:Each
Minimum: 1
Multiple: 1
US$17.25 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEPT
Manufacturer Part No114-40040
Order Code4204386
Technical Datasheet
Product Range-
No. of Contacts11Contacts
Pitch Spacing7.62mm
No. of Rows1 Row
Rows Loaded-
Contact Plating-
Contact MaterialCopper Alloy
No. of Mating Cycles400
SVHCNo SVHC (15-Jan-2019)
Product Overview
- DIN 41612 Female straight, type H11 receptacle connector with 11 contacts
- IEC 60603-2 (DIN 41612) specification
- Performance level 2
- Faston termination technology
- Insulator material is PBT glass filled UL 94 V-0
- Copper alloy contact material
- Durability of 400 mating cycles
- 15A operational current
- 3100V test voltage
- Operating temperature range from -55°C to +125°C
Technical Specifications
Product Range
-
Gender
Receptacle
No. of Rows
1 Row
Contact Plating
-
No. of Mating Cycles
400
No. of Contacts
11Contacts
Pitch Spacing
7.62mm
Rows Loaded
-
Contact Material
Copper Alloy
SVHC
No SVHC (15-Jan-2019)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2019)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.025
