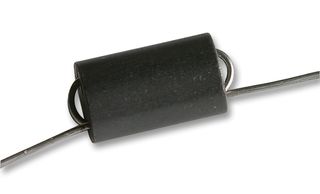

Ferrite Core, Cylindrical, 380 ohm, 10 mm Length, 50 MHz to 500 MHz, 0.75 mm ID, 6 mm OD
Image is for illustrative purposes only. Please refer to product description.
No Longer Stocked
Product Information
ManufacturerFAIR-RITE
Manufacturer Part No2961666661
Order Code1191313
Technical Datasheet
Ferrite Bead Case / PackageAxial Leaded
Impedance380ohm
DC Current Rating-
Inner Diameter0.75mm
Frequency Min50MHz
Frequency Max500MHz
DC Resistance Max-
Impedance Tolerance-
Product Length14mm
Product Width-
Product Height-
Ferrite MountingThrough Hole
Operating Temperature Min-55°C
Operating Temperature Max125°C
Qualification-
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 2961666661 is a Wound Bead with 61-grade material used in EMI applications for suppression of noise frequencies above 200MHz. A high frequency NiZn ferrite developed for a range of inductive applications up to 25MHz. Wire used for winding is oxygen-free high conductivity copper with 100% matte tin plating over a nickel undercoating. Beads are controlled for impedance limits only. Minimum impedance values are specified for the + marked frequencies. The 61 material parts on the 4291A RF impedance analyser.
- Minimum impedance is typically the listed impedance less 20%
- -55 to 125°C Operating temperature range
