973646100

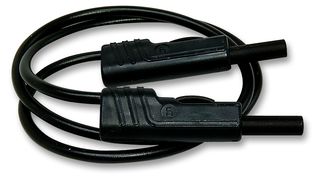

Test Lead, 4mm Banana Plug to 4mm Banana Plug, Black, 60 V, 16 A, 1 m
Image is for illustrative purposes only. Please refer to product description.
ManufacturerHIRSCHMANN TEST AND MEASUREMENT
Manufacturer Part No973646100
Order Code810587
Product RangeMLB 100/1 V Series
Technical Datasheet
158 In Stock
75 more incoming. You can reserve stock now
UK Stock
Order before 3pm standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | US$13.454 |
| 5+ | US$11.913 |
| 10+ | US$11.578 |
Price for:Each
Minimum: 1
Multiple: 1
US$13.45 (ex VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHIRSCHMANN TEST AND MEASUREMENT
Manufacturer Part No973646100
Order Code810587
Product RangeMLB 100/1 V Series
Technical Datasheet
Test Connector Type A4mm Stackable Banana Plug, Shrouded
Test Connector Type B4mm Stackable Banana Plug, Shrouded
Lead Length - Imperial3.3ft
Lead Length - Metric1m
Insulator ColourBlack
Current Rating16A
Voltage Rating60VDC
Product RangeMLB 100/1 V Series
SVHCNo SVHC (23-Jan-2024)
Product Overview
973646100 is a 4mm banana plug to 4mm banana plug measuring lead. This is a contact-protected measuring lead, at either end:4mm diameter plug, insulated by latching and sprung insulated sleeve which is only released by pressure on the side mounted locking spring.
- Highly flexible, double insulated stranded conductor
- Colour indicator for the recognition of damage to the insulation
- 4mm diameter socket for tower construction
- 100cm cable length, 1mm² conductor size, black housing colour
- 30VAC / 60VDC rated voltage, 16A rated current
- 22mohm contact resistance
- Contact pin: brass, contact spring: copper-beryllium
- PVC cable material, PA housing material
- UL 94 V-2 flammability rating
- Temperature range from -15°C to +70°C
Technical Specifications
Test Connector Type A
4mm Stackable Banana Plug, Shrouded
Lead Length - Imperial
3.3ft
Insulator Colour
Black
Voltage Rating
60VDC
SVHC
No SVHC (23-Jan-2024)
Test Connector Type B
4mm Stackable Banana Plug, Shrouded
Lead Length - Metric
1m
Current Rating
16A
Product Range
MLB 100/1 V Series
Technical Docs (1)
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85444290
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.046
