FS75R12KT3BOSA1

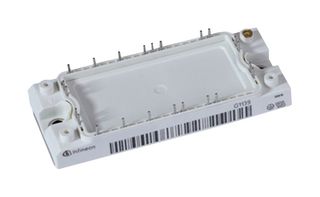

IGBT Module, Six Pack [Full Bridge], 105 A, 1.7 V, 355 W, 125 °C, Module
Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFS75R12KT3BOSA1
Order Code2726190
Product RangeEconoPACK 2
Also Known AsFS75R12KT3, SP000100441
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerINFINEON
Manufacturer Part NoFS75R12KT3BOSA1
Order Code2726190
Product RangeEconoPACK 2
Also Known AsFS75R12KT3, SP000100441
Technical Datasheet
Transistor PolarityN Channel
IGBT ConfigurationSix Pack [Full Bridge]
Continuous Collector Current105A
DC Collector Current105A
Collector Emitter Saturation Voltage Vce(on)1.7V
Collector Emitter Saturation Voltage1.7V
Power Dissipation355W
Power Dissipation Pd355W
Collector Emitter Voltage V(br)ceo1.2kV
Operating Temperature Max125°C
Junction Temperature Tj Max125°C
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 3 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPACK 2
SVHCNo SVHC (08-Jul-2021)
