TLS203B0LDVBOARDTOBO1

Demonstration Board, Power Management, TLS203B0LDV, Low Dropout Linear Regulator

INFINEON TLS203B0LDVBOARDTOBO1
×
×

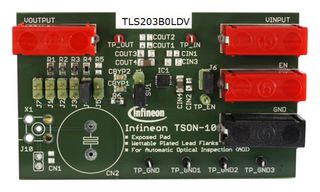

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
INFINEON INFINEON
Manufacturer Part No:
TLS203B0LDVBOARDTOBO1
Order Code:
3514734
Also Known As:
SP001433436, TLS203B0LDV BOARD

Product Overview

Evaluation board for low noise post LDO TLS203B0LDV in very small leadless TSON10 pin package with 300mA output current capability and enable feature. The TLS203B0 is a micropower, low noise, low dropout voltage regulator. The device is capable of supplying an output current of 300mA with a dropout voltage of 270mV. Designed for use in battery-powered systems, the low quiescent current of 30µA makes it an ideal choice. A key feature of the TLS203B0 is its low output noise. By adding an external 0.01µF bypass capacitor, the output noise drops to very low numbers. The TLS203B0 voltage regulator is stable with output capacitors as small as 3.3µF. Small ceramic capacitors can be used without the series resistance required by many other regulators. Internal protection circuitry includes reverse battery protection, current limiting and reverse current protection. The TLS203B0 comes as fixed output voltages 3.3V, 5V as well as adjustable device with a 1.22V reference voltage.
  • Supply voltage range from 12V to 20V
  • Output voltage range from 5V to 20V
  • Suitable for use in automotive electronics as post regulator (AEC qualified)

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Infineon

:
TLS203B0LDV

:
Power Management - Voltage Regulator

:
Low Dropout Linear Regulator

:
Demo Board TLS203B0LDV

:
-
