DM164120-4

The DM164120-4 18 Pin Demo Board now with PIC16F1827 includes 4 LEDs, a potentiometer for ADC, a pushbutton, a prototyping area, and a 6 pin connector for PICkit 2 or PICkit 3. It also includes 2 extra bare PCB boards for your own design. The PIC16F1827 is a 20 pin flash microcontrollers with nanoWatt XLP technology. Along with enhanced Mid range Core with 49 Instruction, 16 Stack Levels and flash program memory with self read or write capability.

• Data signal modulator module
• Integrated capacitive mTouch sensing module and 32MHz oscillator
• 2 ECCP & 2 CCP (Enhanced/Capture Compare PWM)
• MI2C, SPI, EUSART w/auto baud
• Comparators with selectable Voltage Reference
• Extended Watchdog Timer (EWDT) and enhanced power On or Off Reset
• In Circuit Serial Programming (ICSP) and on board In Circuit Debug
• 12 Channel 10bit ADC with voltage reference and 25mA source/sink current I/O

Applications

Communications & Networking, Sensing & Instrumentation

Contents

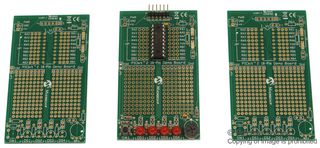

3 Boards (1 Populated, 2 Bare)

Notes

90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
