MCCOG128064K6W-FPTLW

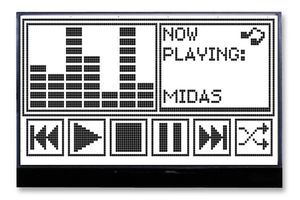

Graphic LCD, 128 x 64, Black on White, 3.3V, Parallel, No Font, Transflective
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMCCOG128064K6W-FPTLW
Order Code2219017
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMCCOG128064K6W-FPTLW
Order Code2219017
Technical Datasheet
Resolution128 x 64
Display AppearanceBlack on White
Logic Voltage3.3V
Interface TypeParallel
Font SetNo Font
Display ModeTransflective
LCD Display TypeFSTN
Module Size80mm x 54mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOG
Backlighting ColourWhite LED
Product Range-
SVHCNo SVHC (10-Jun-2022)
Product Overview
- Graphic LCD module
- Resolution 128x64 dots (128 x 64)
- Positive mode FSTN material
- Appearance black dots on white background
- Transflective technology, for both outdoor and indoor applications
- Chip on glass construction (COG) for reduced power and low profile requirements
- On glass ST7565P Controller with standard parallel interface
- 3.3V logic supply
- 1/64 display duty and 1/9 driving bias
- Preferred 6 o'clock viewing angle
- White LED backlight
- Wide operating temperature range -20 to +70oC
- 34 way flat flexi cable (FFC), 0.5mm pitch. Plus 2x backlight pins
- Overall dimensions - 80.0 x 54.0 x 10.2mm excluding FFC
- Viewing area - 66.52 x 33.24mm
- Dot size - 0.48 x 0.48mm
