MC122032B6W-SPR-V2
Graphic LCD, 122 x 32 Pixels, 5V, Parallel, No Font, Reflective
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMC122032B6W-SPR-V2
Order Code2675688
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Notify me when back in stock
| Quantity | Price (ex VAT) |
|---|---|
| 5+ | US$16.978 |
Price for:Each
Minimum: 5
Multiple: 5
US$84.89 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMC122032B6W-SPR-V2
Order Code2675688
Technical Datasheet
Resolution122 x 32 Pixels
Display Appearance-
Logic Voltage5V
Interface TypeParallel
Font SetNo Font
Display ModeReflective
LCD Display TypeSTN
Module Size84mm x 44mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourNo Backlight
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview

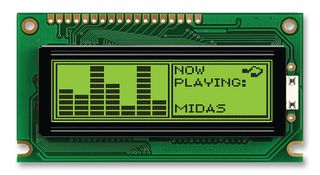

The MC122032B6W-SPR-V2 from Midas is a chip on board graphic LCD module. The overall size of module is 80mm x 44mm x 10mm (W x H x D) with 122 x 32 characters.
- Typical input voltage is 5V
- Supply current is 1.5mA at Vdd = 5V
- Yellow/green reflective STN
- 6 "o" clock viewing direction
- SBN1661G_M02 controller
- Operating temperature range from -20°C to 70°C
- Onboard AVANT SBN1661G Controller with standard parallel interface
- 5V logic supply, 1/32 display duty and 1/7 driving bias
- No backlight
- Preferred 6 o'clock viewing angle
- Wide operating temperature range -20 to +70oC
- 20-way through-hole SIL connection (top, left) with 2.54mm pitch
- Overall dimensions - 84.0 x 44.0 x 10.0mm
- Same foot print as industry standard 16 x 2 alphanumeric LCD module
