FMAD-0934-5010
Power Line Filter, Chassis, General Purpose, 480 VAC, 50 A, Three Phase, 1 Stage, Chassis Mount

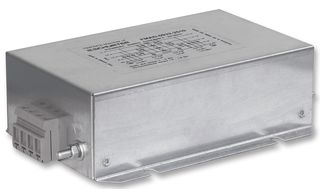

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSCHURTER
Manufacturer Part NoFMAD-0934-5010
Order Code2134516
Product RangeFMAD Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
Notify me when back in stock
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | US$457.985 |
| 5+ | US$448.820 |
| 10+ | US$439.667 |
Price for:Each
Minimum: 1
Multiple: 1
US$457.98 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSCHURTER
Manufacturer Part NoFMAD-0934-5010
Order Code2134516
Product RangeFMAD Series
Technical Datasheet
Filter ApplicationsGeneral Purpose
Voltage Rating480VAC
Filter Type3 Phase + Neutral Line
Current Rating50A
No. of PhasesThree Phase
Filter TerminalsScrew
Inductance Min800µH
No. of Stages1 Stage
Filter MountingChassis Mount
Filter Input TerminalsTerminal Block
Leakage Current Max5mA
Filter Output TerminalsTerminal Block
Product RangeFMAD Series
SVHCLead (21-Jan-2025)
Product Overview
The FMAD series single-stage Filter for 3-phase systems with neutral conductor. It offers 480VAC voltage rating, protection against interference voltage from the mains, used for standard applications and it is suitable for use in equipment according to IEC/UL 60950.
- IP20 Protection rating
- UL94V-0 Flammability rating
- Terminals for three phases, neutral conductor and ground
- High symmetrical and asymmetrical attenuation
- In the frequency range from 10kHz up to 300MHz
Applications
Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
Filter Applications
General Purpose
Filter Type
3 Phase + Neutral Line
No. of Phases
Three Phase
Inductance Min
800µH
Filter Mounting
Chassis Mount
Leakage Current Max
5mA
Product Range
FMAD Series
Voltage Rating
480VAC
Current Rating
50A
Filter Terminals
Screw
No. of Stages
1 Stage
Filter Input Terminals
Terminal Block
Filter Output Terminals
Terminal Block
SVHC
Lead (21-Jan-2025)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Tariff No:85363030
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):3.4
