TT HVP 15HF
Oscilloscope Probe, High-Voltage Passive Probe, 50 MHz, 30 kV, 1000:1

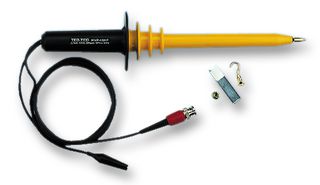

Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerTESTEC
Manufacturer Part NoTT HVP 15HF
Order Code4019027
Technical Datasheet
Oscilloscope Probe FunctionHigh-Voltage Passive Probe
Bandwidth50MHz
Input Voltage Max30kV
Test Probe Attenuation1000:1
For Use WithAll Makes & Models of Oscilloscopes
Product Range-
SVHCNo SVHC (07-Nov-2024)
Product Overview
The TT HVP 15HF is a 50MHz High-Voltage Passive Probe for digital oscilloscope with 1000:1 attenuation ratio.
- Rise time of 7ns
- Loading input of 100MΩ/1pF
- 0 to 50°C Operating temperature range
- CAT I/Pollution degree 2 overvoltage category
Applications
Test & Measurement
Technical Specifications
Oscilloscope Probe Function
High-Voltage Passive Probe
Input Voltage Max
30kV
For Use With
All Makes & Models of Oscilloscopes
SVHC
No SVHC (07-Nov-2024)
Bandwidth
50MHz
Test Probe Attenuation
1000:1
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Tariff No:90309000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.48
