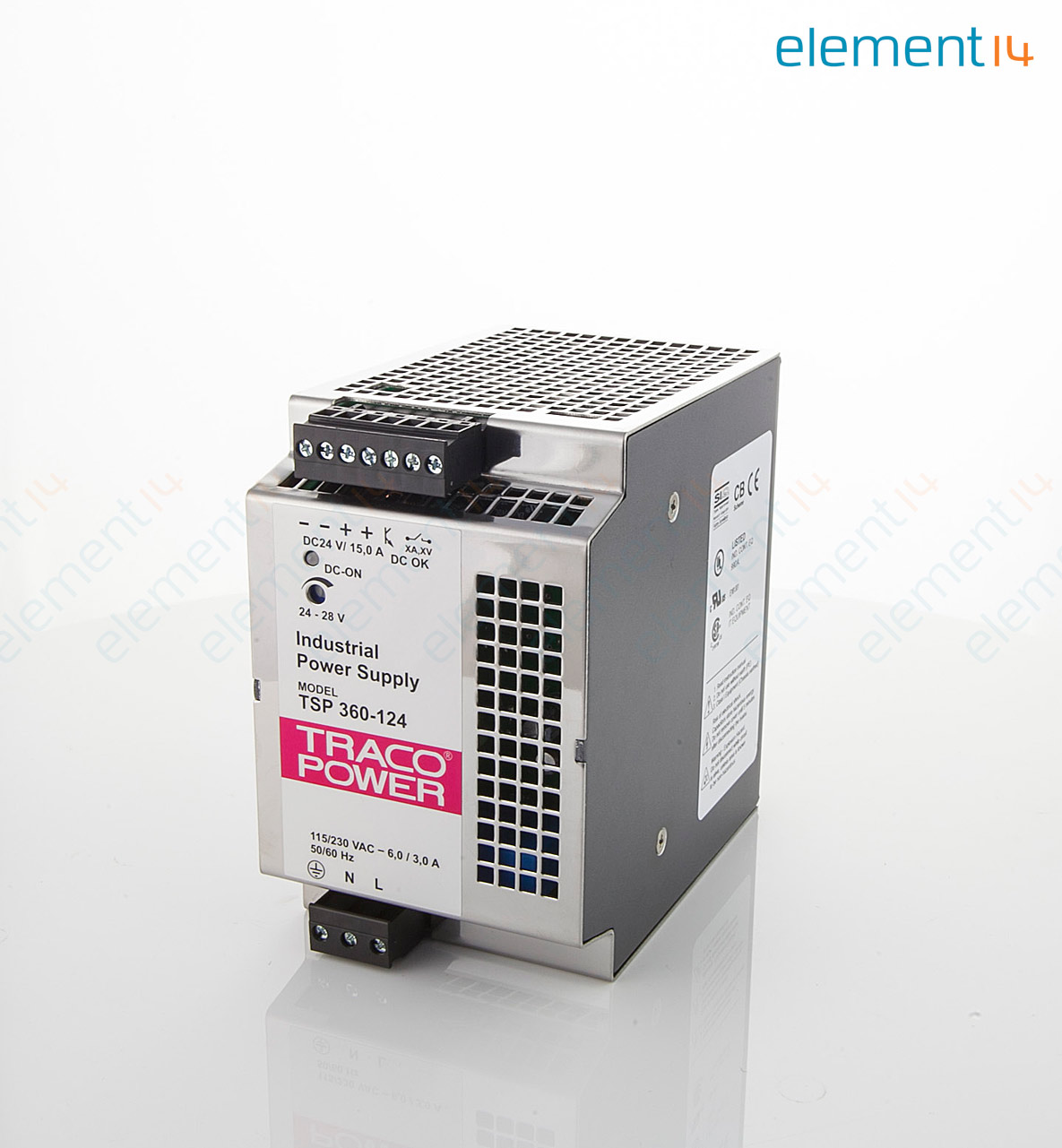

TSP 360-124
AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 360 W, 24 VDC, 15 A
- Manufacturer:
- TRACO POWER TRACO POWER
- Manufacturer Part No:
- TSP 360-124
- Order Code:
- 1242646
- Product Range
- TSP Series
- Technical Datasheet:
- TSP 360-124 Datasheet
Product Range Selector (TSP Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- ITE
- :
- 360W
- :
- 1 Output
- :
- 24VDC
- :
- 15A
- :
- -
- :
- -
- :
- -
- :
- -
- :
- -
- :
- -
- :
- 85VAC
- :
- 85V AC to 264V AC
- :
- 264V
- :
- Adjustable, Fixed
- :
- TSP Series
Technical Documents (6)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview
TSP series comprises high performance DIN-rail mount power supplies designed for reliable operation under difficult factory floor conditions. High immunity against electrical disturbances and rugged metal casing make these modules the best choice to power sensitive loads in industrial process control systems, machine tools or other demanding industrial applications. They provide a DC-OK signal and external shut down function. Detachable screw terminal blocks make the connection easy. Safety standards include IEC/EN 60950-1, UL 60950-1, CSA-C22.2 No. 60950-1-03, IEC/EN 61010-1, IEC/EN 61010-2-201, UL 508, CSA-C22.2 No. 107, EN 60204, EN 50178, EN 61558-2-16, UL 60079-15. Safety approvals include CB report for IEC/EN 60950-1, IEC/EN 61010-1 & 61010-2-2, UL 60950-1 rec. File: e181381, UL 508 listed File: e210002, CSA (file no. 219759) for UL 60950-1, UL 508, UL 60079-15-02, ANSI/ISA 12.12.01, CSA-22.2 No. 60950-1-03, CSA C22.2 No. 107, CSA 60079-15-02.
- Rugged metal case for harsh industrial environments
- Shock and vibration proof
- Industrial operating temperature range from -25°C to +70°C
- Adjustable output voltage
- Protection against short circuit, overvoltage and overtemperature
- Power OK signal, remote on/off
- 3-year product warranty
- IP 20 (IEC/EN 60529) degree of protection
- Aluminium (chassis) / stainless steel (cover) enclosure material
- Detachable screw terminals (plugs included) connection, 2 terminals per output
Best Seller
48 In stock
48 available same day shipping :Order before 15:00 (for re-reeled items 15:00) Mon-Fri (excluding National Holidays)
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
20 more will be available week commencing 7/30/23
30 more will be available week commencing 10/22/23
Extra stock is available upon order to the Supplier Lead Time which is approximately 2/5/24
More stock available week commencing 2/5/24
Standard lead time for this product is 45 weeks.
More details
Standard lead time for this product is 45 weeks.
More details
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
US$261.626
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
| Quantity | Price | Your Price |
|---|---|---|
| 1+ | US$261.626 | |
| 10+ | US$252.60 | |
| 25+ | US$248.086 | |
| 50+ | US$245.243 | |
| 100+ | US$240.342 | |
