CS2

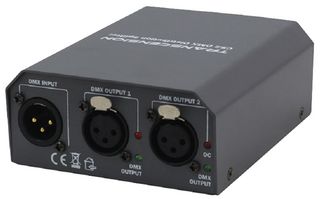

2 Channel DMX Splitter
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTRANSCENSION
Manufacturer Part NoCS2
Order Code3403674
Also Known AsGTIN UPC EAN: 0090125504415
Unable to Retrieve Availability Information
Product Information
ManufacturerTRANSCENSION
Manufacturer Part NoCS2
Order Code3403674
Also Known AsGTIN UPC EAN: 0090125504415
Product Range-
Plug Type-
SVHCTo Be Advised
Product Overview
A combination 2 Way DMX distribution splitter featuring one input and two outputs plus IEC power input and IEC power output. Both DMX input and DMX outputs are provided with 3-Pin XLR connectors, each DMX output has an independent driver.
- 2 Way DMX distributor with one input and two outputs
- 3 Pin XLR input
- 3 Pin XLR output per channel
- Each DMX output features an independent driver
- 100% electrical isolation between all inputs/outputs
- IEC power input with IEC power output
- Rugged steel chassis
- Power supply: 240V, 50Hz
- Fuse: F500mA 250V
- Dimensions: 50x150x105mm
- Weight: 0.7kg
Technical Specifications
Product Range
-
SVHC
To Be Advised
Plug Type
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85371098
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.895
