Our range of Programmable Oscillators and Programmable MEMS Oscillators gives designers flexibility in assigning a frequency value for their application

What is a programmable oscillator?

A Programmable Oscillator is a type of crystal oscillator that can be programmed to output a specific frequency. It is used in applications where the frequency needs to be changed frequently or where the frequency is not known at the time of design. Programmable oscillators offer users the flexibility to request parts programmed to their desired frequency, offering frequency options that won’t normally be available and often with smaller lead times

Programmable MEMS Oscillators

MEMS oscillators are complete timing systems based on a programmable architecture. Because all aspects of the timing system are included—resonator, oscillator sustaining circuit, phase-locked loop (PLL), temperature compensation, on-chip power-supply regulators, and filters—an extremely large and flexible portfolio of programmable features can be offered to customers.

Applications for programmable oscillators

Programmable oscillators are used in a variety of applications such as board-level designs, FPGA-based systems, networking, storage, video and other embedded applications. They offer flexibility for board-level designs and can support standard and non-standard frequencies and quick frequency experiments for rapid prototyping.

They also offer design flexibility that arises from high-resolution frequency selection for clock tree optimisation. Another big benefit is spread-spectrum modulation for reducing electromagnetic interference (EMI)

Cardinal Components’ CPPL Series Field Programmable Crystal Oscillators can be programmed in the factory or field. These ultra-low jitter devices can be programmed twice, and come in standard package options.

Applications for these devices include:

Driving A/Ds, D/As, FPGAs
Digital Video
Ethernet, GbE
Medical Storage Area Networking
COTS
Broad Band Access
SONET/ SDH/ DWDM
Test & Measurement

Compare Selected Compare (0)

Sort by

Best Match

Best Match Price: Low to High Price: High to Low Stock: Low to High Stock: High to Low

Manufacturer Part No	Order Code	Description / Manufacturer	Price For	Price	Quantity	Programmable Frequency Min	Programmable Frequency Max	Frequency Stability + / -	Oscillator Case	Supply Voltage Nom	Product Range	Operating Temperature Min	Operating Temperature Max	Oscillator Output Compatibility
						Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending
CPPLX4-A7BR-XX.XXXNP	8410712 Data Sheet RoHS	Oscillator, Programmable, 1 MHz to 133 MHz, 25 ppm, 5 V, CPPL Series CARDINAL You previously purchased this product. View in Order History	Each	1+ US$5.41 3+ US$5.182 5+ US$4.928 10+ US$4.661 20+ US$4.407 50+ US$4.293 250+ US$4.216 500+ US$4.191 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	1MHz	133MHz	25ppm	Through Hole, 13.2mm x 13.2mm	5V	CPPL	-40°C	85°C	CMOS / TTL
CPPLX7-A7BR-XX.XXXNP	8410674 Data Sheet RoHS	Oscillator, Programmable, 0.5 MHz to 133 MHz, 25 ppm, 5 V, CPPL Series CARDINAL You previously purchased this product. View in Order History	Each	1+ US$4.978 5+ US$4.445 10+ US$4.178 20+ US$3.95	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	0.5MHz	133MHz	25ppm	SMD, 7mm x 5mm	5V	CPPL	-40°C	85°C	CMOS / TTL

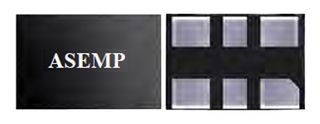

ASEMPLV-BLANK-LR-T	1960644 Data Sheet + RoHS Date/Lot Code	Oscillator, Programmable, 2.3 MHz to 460 MHz, 25 ppm, 3.3 V, ASEMP Series ABRACON You previously purchased this product. View in Order History	Each	1+ US$31.521 2+ US$30.988 3+ US$30.467 5+ US$29.934 10+ US$29.401 20+ US$29.147 50+ US$28.88 100+ US$27.927 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2.3MHz	460MHz	25ppm	SMD, 3.2mm x 2.5mm	3.3V	ASEMP	-40°C	85°C	LVDS
Q33519E000002 SG-8003CE	2405801 Data Sheet RoHS Date/Lot Code	Oscillator, Programmable, 1 MHz to 166 MHz, 3.3 V, SG-8003 Series EPSON You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape	1+ US$0.973 10+ US$0.972 25+ US$0.97 50+ US$0.969 100+ US$0.968	Restricted Item	1MHz	166MHz	-	SMD, 3.2mm x 2.5mm	3.3V	SG-8003	-40°C	85°C	CMOS
570BAB000544DG	2930630 Data Sheet + RoHS Date/Lot Code	Oscillator Programmable, 10MHz to 810MHz, 61.5ppm, 3.3V Supply Nom, LVDS Output, SMD 7mm x 5mm SILICON LABS You previously purchased this product. View in Order History	Each	1+ US$22.873	Restricted Item	10MHz	810MHz	61.5ppm	SMD, 7mm x 5mm	3.3V	Si570	-40°C	85°C	LVDS

570BBC000121DG	2930631 Data Sheet + RoHS Date/Lot Code	Oscillator Programmable, 10MHz to 280MHz, 31.5ppm, 3.3V Supply Nom, LVDS Output, SMD 7mm x 5mm SILICON LABS You previously purchased this product. View in Order History	Each	1+ US$21.984 5+ US$18.91 10+ US$15.824 50+ US$14.173 100+ US$12.522	Restricted Item	10MHz	280MHz	31.5ppm	SMD, 7mm x 5mm	3.3V	Si570	-40°C	85°C	LVDS

CPPLX1-A5BC-XX.XXXNP	8410747 Data Sheet RoHS	OSCILLATOR, PROG. BLANKS, FULL CAN CARDINAL You previously purchased this product. View in Order History	Each	1+ US$4.166 10+ US$3.835 100+ US$3.683 400+ US$3.493 1000+ US$3.429 2000+ US$3.353 4000+ US$3.289 More Pricing...	Restricted Item	1MHz	133MHz	25ppm	Through Hole, 20.8mm x 13.2mm	5V	CPPL	-20°C	70°C	CMOS / TTL

570CAC000141DG	2930633 Data Sheet + RoHS Date/Lot Code	Oscillator Programmable, 10MHz to 160MHz, 61.5ppm, 3.3V Supply Nom, CMOS Output, SMD 7mm x 5mm SILICON LABS You previously purchased this product. View in Order History	Each	1+ US$13.995 5+ US$13.399 10+ US$12.789 50+ US$12.535 100+ US$12.281	Restricted Item	10MHz	160MHz	61.5ppm	SMD, 7mm x 5mm	3.3V	Si570	-40°C	85°C	CMOS

514CBB000112AAG	2930628 Data Sheet + RoHS Date/Lot Code	Oscillator Programmable, 100kHz to 170MHz, 50ppm, 3.3V Supply Nom, CMOS Output, SMD 7mm x 5mm SILICON LABS You previously purchased this product. View in Order History	Each	1+ US$12.649 5+ US$12.014 10+ US$11.379 50+ US$11.176 100+ US$10.96	Restricted Item	100kHz	170MHz	50ppm	SMD, 7mm x 5mm	3.3V	Si514	-40°C	85°C	CMOS

570CAC000121DG	2930632 Data Sheet + RoHS Date/Lot Code	Oscillator Programmable, 10MHz to 160MHz, 61.5ppm, 3.3V Supply Nom, CMOS Output, SMD 7mm x 5mm SILICON LABS You previously purchased this product. View in Order History	Each	1+ US$13.995 5+ US$13.399 10+ US$12.789 50+ US$12.535 100+ US$12.281	Restricted Item	10MHz	160MHz	61.5ppm	SMD, 7mm x 5mm	3.3V	Si570	-40°C	85°C	CMOS

CPPLX5-A5BC-XX.XXXNP	8410763 Data Sheet RoHS	OSCILLATOR, PROG. BLANKS, 5MMX3.2MM CARDINAL You previously purchased this product. View in Order History	Each	1+ US$5.512 10+ US$5.194 100+ US$5.004 400+ US$4.42 1000+ US$3.975 2000+ US$3.569 4000+ US$3.213 More Pricing...	Restricted Item	1MHz	133MHz	25ppm	SMD, 7mm x 3.2mm	5V	CPPL	-20°C	70°C	CMOS / TTL

570BAB000118DG	2930629 Data Sheet + RoHS Date/Lot Code	Oscillator Programmable, 10MHz to 810MHz, 61.5ppm, 3.3V Supply Nom, LVDS Output, SMD 7mm x 5mm SILICON LABS You previously purchased this product. View in Order History	Each	1+ US$51.791	Restricted Item	10MHz	810MHz	61.5ppm	SMD, 7mm x 5mm	3.3V	Si570	-40°C	85°C	LVDS

570MAC000118DG	3105897 Data Sheet + RoHS	I2C PROGRAMMABLE XO SILICON LABS You previously purchased this product. View in Order History	Each	1+ US$21.171 5+ US$18.098 10+ US$15.024 50+ US$14.719	Restricted Item	-	-	-	-	-	-	-	-	-

SI501-PROG-DAX	2394219 Data Sheet RoHS	CMEMS OSC BLANK, PROG, 0.032-100MHZ, SMD SILICON LABS You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2394219 2394219RL in Re-reel	1+ US$1.803 3+ US$1.753 5+ US$1.689 10+ US$1.575 20+ US$1.562 50+ US$1.549 250+ US$1.537 500+ US$1.295 More Pricing...	Restricted Item	32kHz	100MHz	20ppm	SMD, 2.5mm x 2mm	3.3V	SI501	-40°C	85°C	CMOS

Q33519E000001 SG-8003CE	2405800 Data Sheet RoHS	Oscillator, Programmable, 1 MHz to 166 MHz, 1.8 V, SG-8003 Series EPSON You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2405800 2405800RL in Re-reel		Restricted Item	1MHz	166MHz	-	SMD, 3.2mm x 2.5mm	1.8V	SG-8003	-40°C	85°C	CMOS

ASFLMPLV-BLANK-XR-T	1960655 Data Sheet + RoHS	OSC, MEMS, LVDS, 10MHZ425MHZ, 5X3.2 ABRACON You previously purchased this product. View in Order History	Each	1+ US$6.553 50+ US$6.426 100+ US$6.287 250+ US$6.16 500+ US$6.033 1000+ US$5.893 5000+ US$5.766 10000+ US$5.639 More Pricing...	Restricted Item	2.3MHz	460MHz	25ppm	SMD, 5mm x 3.2mm	3.3V	-	-40°C	105°C	LVDS

ASVMPLP-BLANK-XR-T	1960663 Data Sheet + RoHS	OSC, MEMS, LVPECL, 10-425MHZ, 5X3.2 ABRACON You previously purchased this product. View in Order History	Each	1+ US$50.495 2+ US$44.183 3+ US$36.614 5+ US$32.83 10+ US$30.302 20+ US$28.283 50+ US$26.772 100+ US$25.756 More Pricing...	Restricted Item	2.3MHz	460MHz	25ppm	SMD, 7mm x 5mm	3.3V	-	-40°C	105°C	LVPECL

ASEMPC-BLANK-XR-T	1960722 Data Sheet + RoHS	OSC, MEMS, CMOS, 10-170MHZ, 3.2X2.5 ABRACON You previously purchased this product. View in Order History	Each	1+ US$17.602 2+ US$17.399 3+ US$17.183 5+ US$16.98 10+ US$16.764 20+ US$16.434 50+ US$16.091 100+ US$15.761 More Pricing...	Restricted Item	2.3MHz	170MHz	25ppm	SMD, 3.2mm x 2.5mm	3.3V	-	-40°C	105°C	CMOS

ASVMPLV-BLANK-XR-T	1960667 Data Sheet + RoHS	OSC, MEMS, LVDS, 10-425MHZ, 5X3.2 ABRACON You previously purchased this product. View in Order History	Each	1+ US$6.248 50+ US$6.121 100+ US$5.994 250+ US$5.867 500+ US$5.753 1000+ US$5.626 5000+ US$5.499 10000+ US$5.372 More Pricing...	Restricted Item	2.3MHz	460MHz	25ppm	SMD, 7mm x 5mm	3.3V	-	-40°C	105°C	LVDS

ASFLMPC-BLANK-XR-T	1960755 Data Sheet + RoHS	OSC, MEMS, CMOS, 10-170MHZ, 5X3.2 ABRACON You previously purchased this product. View in Order History	Each	1+ US$3.289 10+ US$2.464 100+ US$2.197	Restricted Item	2.3MHz	170MHz	25ppm	SMD, 5mm x 3.2mm	3.3V	-	-40°C	105°C	CMOS

ASFLMPLP-BLANK-XR-T	1960651 Data Sheet + RoHS	OSC, MEMS, LVPECL, 10-425MHZ, 5X3.2 ABRACON You previously purchased this product. View in Order History	Each	1+ US$12.979 10+ US$8.547 100+ US$7.137 300+ US$6.858 700+ US$6.172 2000+ US$5.563 3000+ US$5.004 More Pricing...	Restricted Item	2.3MHz	460MHz	25ppm	SMD, 5mm x 3.2mm	3.3V	-	-40°C	105°C	LVPECL

ASVMPC-BLANK-XR-T	1960784 Data Sheet + RoHS	OSC, MEMS, CMOS, 10-170MHZ, 5X3.2 ABRACON You previously purchased this product. View in Order History	Each	1+ US$16.904 2+ US$16.548 3+ US$16.18 5+ US$15.824 10+ US$15.456 20+ US$15.316 50+ US$15.253 100+ US$14.948 More Pricing...	Restricted Item	2.3MHz	170MHz	25ppm	SMD, 7mm x 5mm	3.3V	-	-40°C	105°C	CMOS

ASEMPLP-BLANK-LR-T	1960640 Data Sheet + RoHS	OSC, MEMS, LVPECL, 10-425MHZ, 3.2X2.5 ABRACON You previously purchased this product. View in Order History	Each	1+ US$45.999 10+ US$40.246 100+ US$33.35 200+ US$29.896 600+ US$27.597 2000+ US$25.756 More Pricing...	Restricted Item	2.3MHz	460MHz	25ppm	SMD, 3.2mm x 2.5mm	3.3V	-	-40°C	85°C	LVPECL

Q33519E000001 SG-8003CE	2405800RL Data Sheet RoHS	Oscillator, Programmable, 1 MHz to 166 MHz, 1.8 V, SG-8003 Series EPSON You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Re-reel Packaging Options Suggested replacement for:2405800RL 2405800 in Cut Tape A US$5.00 re-reeling charge will be added for this product		Restricted Item	-	-	-	-	-	-	-	-	-

X1G0039910001 SG-8003CG	2405797 Data Sheet RoHS	Oscillator, Programmable, 1 MHz to 166 MHz, 2.5 V, SG-8003CG Series EPSON You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape		Restricted Item	1MHz	166MHz	-	SMD, 2.5mm x 2mm	2.5V	SG-8003CG	-40°C	85°C	CMOS
